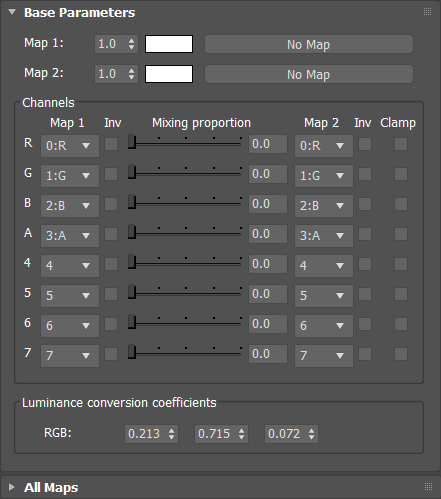

6.9. Shuffle

This texture map allows you to mix the color channels of two maps.

Map 1

First source. The source value is the product of weight, color and texture map.
Map 2

The second source. The source value is the product of weight, color and texture map.

Channels

A set of identical settings for each of the 8 result channels.
Map 1

Selects a channel from the first source.
Inv (Map 1)

Invert the channel of the first source.
Mixing ratio

The share between the first source and the second.
Map 2

Selects a channel from the second source.
Inv (Map 2)

Invert the channel of the second source.
Clamp

Limit the result to the interval [0, 1].
Luminance conversion coefficients

If the source for a channel calculates brightness, then it will use these conversion constants (for R G B channels only).
